Components Required:
1 each of Weeding Blades S100 and S101 (#'s on cast arms between the rivets)
2 of 3/8”x1-1/4” square head bolts + flat washers, lock washers and 3/8” nuts
1 each of Weeding Blades S100 and S101 (#'s on cast arms between the rivets)
2 of 3/8”x1-1/4” square head bolts + flat washers, lock washers and 3/8” nuts

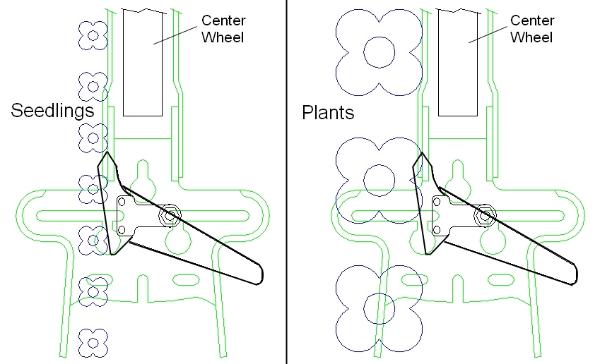

Attach a single weeding blade as
shown and work up one side of the
plant row, then turn around and work
down the other side.
The elevated tip of the weeding blade
SHOULD brush the plants.
*The sharp section of the blade (which
contacts the soil) is 1” back from the
tip to avoid leaf or root damage.
shown and work up one side of the
plant row, then turn around and work
down the other side.
The elevated tip of the weeding blade
SHOULD brush the plants.
*The sharp section of the blade (which
contacts the soil) is 1” back from the
tip to avoid leaf or root damage.
Weeding Blade (Sweeps) Assembly
- Weed large open garden areas that have not yet been planted (seedbeds)
- Weed the garden paths between beds or rows of plants
- Weed right next to rows of seedlings or plants. (one side at a time, or both sides at once)
| Row Weeding Options (Centered Wheel): With a centered wheel you can only weed ONE side of the row at a time. |
| Click here for information on how to set up your wheel hoe for weeding paths, seedbeds, and open areas |
| Row Weeding Options using Double Wheel Hoe: Cut your weeding time in half! |
Using the double wheel option lets you weed both sides of a row of plants at the same time.
As stated in the single wheel instructions above, the elevated tips of the weeding blades SHOULD brush the plants.
As stated in the single wheel instructions above, the elevated tips of the weeding blades SHOULD brush the plants.
Page 1: Wheel Assembly
Page 2: Handle Assembly
Page 3: Cultivator Teeth
Page 4: Weeding Blades
(paths, seedbeds, and open areas)
Page 5: Weeding Blades
(row weeding: single & double wheel)
Page 2: Handle Assembly
Page 3: Cultivator Teeth
Page 4: Weeding Blades
(paths, seedbeds, and open areas)
Page 5: Weeding Blades
(row weeding: single & double wheel)
| Click here for the Double Wheel Hoe conversion instructions |
